Radial Edge Disc Filter (REDF)

The Next-Gen Auto Back washable Filter

  • Purpose & Application: The auto-back washable filter (REDF) is designed for chemical reaction's where salt percipitates or activated carbon powder or catalyst is used
  • System Components: The REDF system consists of a filter housing, filter candles, and necessary instrumentation for operation & monitoring.
  • Material Options: Filter housings are available in SS 304, SS 316, SS 316L, Duplex, Hastelloy, or with PTFE coating / lining to handle various corrosive chemical environments.
  • Unique Filtration Technology: Unlike traditional systems, REDF uses radial flow filter candles, where the feed flows radially across the membrane surface, enhancing efficiency.

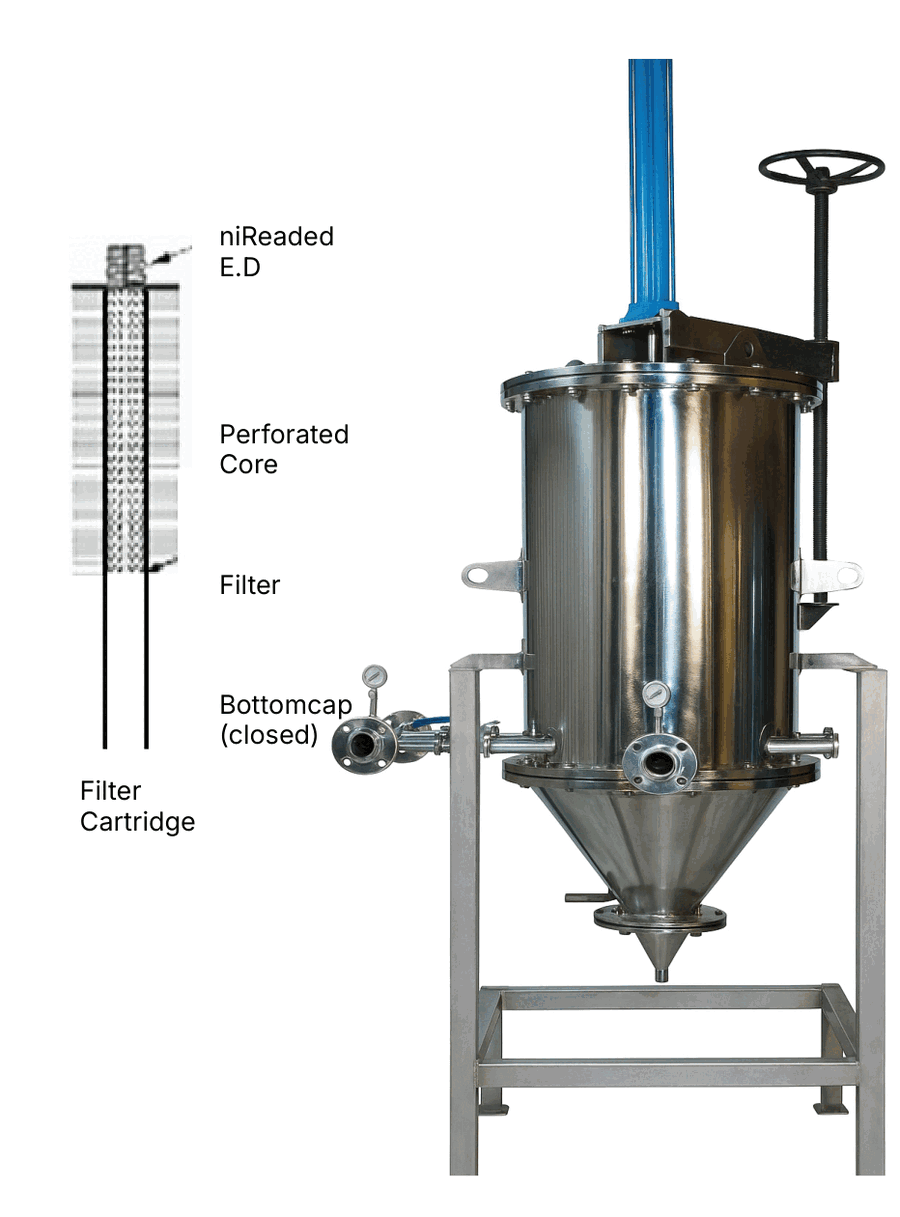

Radial Edge Disc Filter (REDF) vessel and filter cartridge

Features & Benefits:

  • Zero manual labor as no need to open filter housing.
  • Operational cost comes down at zero.
  • Dry cake discharge is possible.
  • Long service life of filter candles.
  • Complete auto backwash.
  • Customzied designs as per requirements.

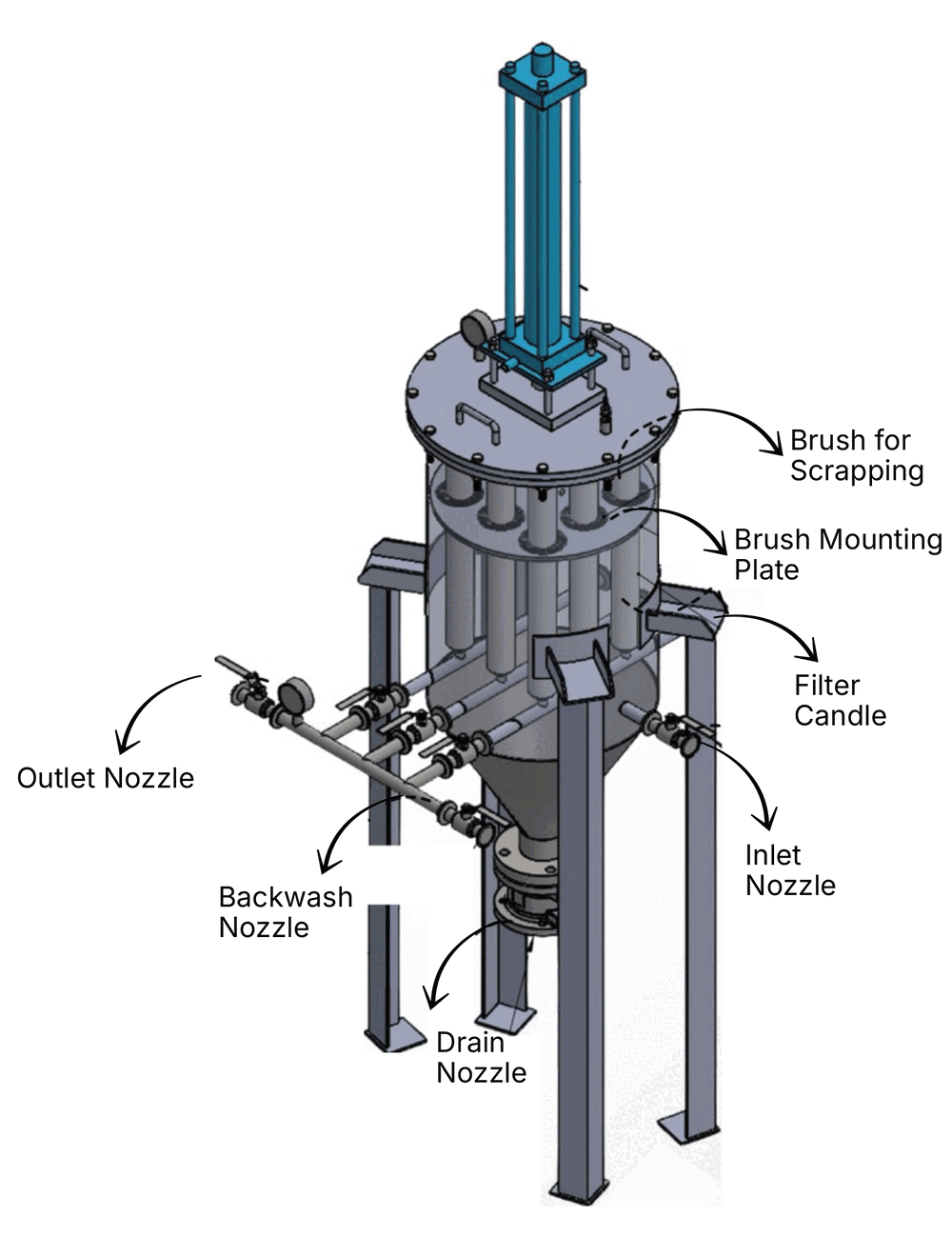

REDF assembly showing inlet, outlet, backwash and drain nozzles, brush mounting plate and filter candles

Applications:

  • API

  • Activated Carbon Filration

  • Catalyst Regeneration Processing

  • Chemicals Petrochemicals

  • Solvent Recovery

  • Beverages Purification
